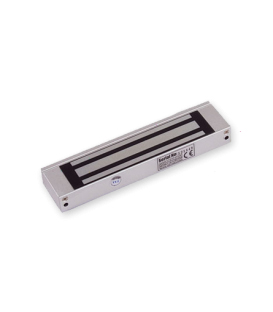

A sturdy magnetic single door lock that is compatible with the Ravica Server application when used in conjunction with our Door Control Unit.
This magnetic door locks meet the demands of security professionals, and the most rigorous building and fire regulations and safety codes in the world. With no moving parts to bind or wear out, the electromagnetic door lock provides instantaneous release, whether caused by a signal from a central control system or from a local exit button.
Size (mm) : | 183L x 39W x 21H |
Armature Plate (mm) : | 130L x 32W x 11H |
Holding Force : | Up to 280kg |
Voltage : | 12 / 24 VDC +10% |
Current Draw : | 12V/300mA 24V/150mA |
Surface Temperature : | ≤+20C |
Operating Temperature : | 10C+55C (14-131F) |
Suitable Humidity : | 0~90%(non-condensing) |
