- Push Video Support when connect with external alarm devices
- Hd. video display
- Mobile surveillance with EagleEyes App

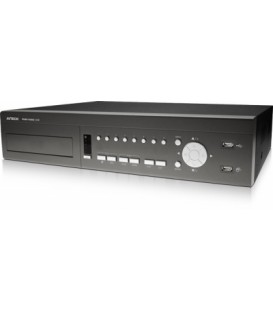

AVC796HD is a 8CH H.264 DVR with active mobile event notifications (Push Video) and all basic functions you needed, such as external alarm devices connection, motion detection, and remote independent operation.
For online viewing, you could use 5 commonly-seen web browsers (Internet Explorer, Mozilla Firefox, Google Chrome, Safari, & Opera) on Windows and MAC OS, or install our mobile app, EagleEyes, on 5 popular mobile platforms (iOS, BlackBerry, Android, Windows Mobile & Symbian).
PUSH VIDEO, Get event video call in 5 sec. for human detection or alarm event
When an alarm event occurs, such as human detection or alarm, this DVR will immediately make a video call to your iPad, iPhone or Android devices which will then activate our mobile app, EagleEyes, automatically for remote access.
Product Specifications
Video System |
NTSC / PAL (auto detection) |
Video Compression Format |
H.264 |
Video Input |
8 channels |
Video Loop Output |
8 channels (Composite video signal 1 Vp-p 75Ω BNC) |
Video Output(BNC) |
MONITOR: For stable display / CALL: For sequence display |
Video Output (VGA) |
Built-in (Output resolution up to 1600 x 1200) |
Video Output (Full HD) |
Built-in (Output resolution up to 1600 x 1200) |
Dual Video Output |
No |
Input |
4 audio inputs |
Output |
2 audio outputs |
DCCS Support |
No |
IVS Support |
No |
Multiplex Operation |
Live display / record / playback / backup / network operations |
System Recovery |
System auto recovery after power failure |
Optional Peripheral |
Keyboard Controller |
AVTECH Free DDNS Service |
Yes |
Max. Recording Rate (960H) |
N/A |
Max. Recording Rate (Frame) |
704×480 pixels with 120 IPS / 704×576 pixels with 100 IPS |
Max. Recording Rate (Field) |
704×240 pixels with 240 IPS / 704×288 pixels with 200 IPS |
Max. Recording Rate (CIF) |
352×240 pixels with 240 IPS / 352×288 pixels with 200 IPS |
Recording Mode |
Manual / Timer / Motion / Alarm / Remote |
Pre-alarm Recording |
YES |
Quick Search |
Time / Motion / Alarm |
Backup Device |
DVD Writer (optional) / USB 2.0 flash drive / Network |
Hard Disk Storage |
Accommodates 2 SATA HDDs (1 HDD capacity up to 4TB) |
SATA Interface |
Yes |
eSATA Interface |
No |
Image Quality Setting |
SUPER BEST / BEST / HIGH / NORMAL |
USB Mouse Control |
Yes |
Motion Detection Area |
16 × 12 grids per channel |
Motion Detection Sensitivity |
3 adjustable parameters for accurate detection |
Event Notification |
FTP & E-Mail |
Picture Zoom |
2X digital zoom |
PTZ Control |
Yes |
Alarm I/O |
2 inputs (Push Video), 1 output |
IR Remote Control |
Yes (IR receiver built-in) |
Key Lock (Password Protection) |
Yes |
User Level |
Administrator & Operator |
Video Loss Detection |
Yes |
Camera Title |
Supports up to 12 letters |
Video Adjustable |
Hue / Saturation / Contrast / Brightness |
Date Display Format |
YY/MM/DD, DD/MM/YY & MM/DD/YY |
Daylight Saving |
Yes |
Operating Temperature |
10℃ ~ 40℃ (50℉~104℉) |
Power Source (±10%) |
DC 19V |
Power consumption (±10%) |
64W |
Dimensions (mm) |
432(W) × 90(H) × 326(D) |
Ethernet |
10/100 Base-T. Supports remote control and live view via Ethernet |
Network Protocol |
TCP/IP, PPPOE, DHCP and DDNS |
Compatible Operating System |
Windows & MAC |
Compatible Program |
Web Browser: Internet Explorer, Mozilla Firefox, Google Chrome, Safari / Video Viewer: For both Windows and MAC operating systems / QuickTime: For both Windows and MAC operating systems |
Max. online users |
10 |
Web Transmitting Compression Format |
H.264 |
Network Live Audio |
Yes |
Remote Independent Operation |
Yes |
R.E.T.R. (Remote Event Trigger Recording) |
Yes |
Compatible Devices |
iPad, iPhone, BlackBerry, Windows Mobile, Symbian & Android mobile devices |
